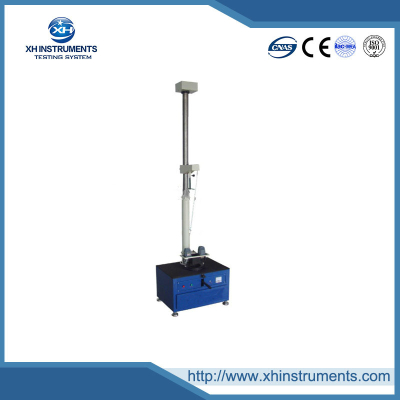

XHS-17 Film Falling Dart Impact Tester, Impact Testing Machine

XHS-17 Film Falling Dart Impact Tester, Impact Testing Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 30 Sets per Month
  • Port: Any Seaport or Airport In China
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
Chat Now!
| Factory
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  xinghua
  • Model Number:  XHS-17

HS-17 Dart Impact Tester is used in testing the chracters of film by quality control department, research and development department, laboratories, film users and so on, adopt electromagnetic suspension, it conforms to ISO 7765, ASTM D1709, apllies to method A and method B, clamp specimen 100% successful, automatic drop device, auto receiving device.

Technical Parameter:


1.Impact energy: 30J
2.Impact height: Method A is 660mm and Method B is 1500mm
3.Mass of the dart: 50g-2000g, increasing by 5g
4.Radius of dart: Method A: R19±1mm Method B: 25±1mm
5.Outside diameter of the clamp: 150mm, inside diameter of the clamp: 125mm
6.Dimension: 650mm×600 mm×2300mm
7.Weight: 140kgs


Jinan Xinghua Instruments Co., Ltd is one of the leading and fast growing testing machine suppliers in China. We specialize in manufacturing, development, research and marketing of different kinds of test instruments. Our roots are planted firmly in the principles of quality and customer service.

Our primary mission is to provide excellent quality control solutions to variousindustries on food, metal, plastic, textile, paint, paper and board worldwide. All our machines conform with international standards such as ISO, ASTM, AATCC, BS, EN, DIN, and JIS.

Jinan Xinghua, also known as XH Instruments, is dedicated to deliver the highest
standard of product and the best service in the testing machine industry. We
have a well-trained staff and personnel to assist you on every testing need
from system configuration to after-sales service.

We continue our dedication to ensure the highest level of customer satisfaction, focusing on latest global innovation and technologies. XH Instruments has diversified into several areas in testing that have complimented the company’s business strategy.

Find out more of Jinan Xinghua’s product releases and areas of specialty.
